Key Specs
Engine power	21.5 hp 16.0 kW
Engine model number	FR651V
Forward speed	0-7 mph 0-11.3 km/h
Front caster tires	11×6-5
Drive tires	18×8.5-8
Seat back height	High back with armrests, 20 in. 51 cm
Width of cut	Accel Deep™ mower deck, 42 in. 107 cm
Mulching system	Optional MulchControl™ attachment
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine
Power	21.5 hp 16.0 kW
Model number	FR651V
Displacement	44.3 cu in. 726 cc
Cylinders	V-twin
Lubrication	Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L
Type	Overhead valve
Battery	12 V 300 CCA
Choke/speed control	Separate levers
Cooling method	Air
Fuel tank capacity	3.0 U.S. gal. 11.4 L
Fuel gauge	Translucent tank

Drive train
Dual hydros	Hydro-Gear EZT-C with 1-in. (2.5-cm) axles

Travel speed
Forward speed	0-7 mph 0-11.3 km/h
Reverse speed	0-3.5 mph 0-5.6 km/h
Speed and direction control	Twin levers
Control adjustment	3 height, 11 positions

Chassis
Frame	Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint	E-coat/powder
Front caster tires	11×6-5
Front caster bearings	Sealed ball bearings
Drive tires	18×8.5-8
Hour meter	Yes
Service interval decal	Yes
Storage compartment	Standard covered
Cup holder	Yes
Maximum towing capacity	250 lb 113 kg

Seat
Seat back height	High back with armrests, 20 in. 51 cm
Fore-aft adjustment	2.9 in. 7 cm
Seat suspension	Two springs

Lift system
Type	Foot lift
Mower cut height	1.25-4.5 in. 3-11 cm
Cut height increments	0.25 in. 0.64 cm
Preset cut height	Yes

Mower deck
Width of cut	Accel Deep™ mower deck, 42 in. 107 cm
Type	Side discharge
Mower deck material	12 gauge 0.105 in. 2.7 mm
Mower drive system	V-belt

PTO
Type	Electric, 105 lb-ft 142 Nm
Drive	V-belt

Dimensions
Wheelbase	49.4 in. 1255 mm
Overall length	75.4 in. 1915 mm
Width without mower	43.3 in. 1100 mm
Width with mower	50.4 in. 1280 mm
Width with mower (deflector raised for storage)	46.5 in. 1180 mm
Height	43.3 in. 1100 mm
Weight	572 lb 260 kg

Operation
Rollover protective structure (ROPS)	No
Slope operating limit	13 degrees; 10 degrees with Material Collection System
Operator presence system	Yes
Park brake interlock	Yes
Operator video	Yes, online

Buyer’s notes
Note 1	Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels
Note 2	Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3	Integrated park brake is automatically applied when steering levers are stowed outward
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional attachments
Mulching system	Optional MulchControl™ attachment
Rubber floor mat	Standard
Sun shade	Optional
Mounted sprayer	Not available
Protective cover	Optional
Light kit	Standard
Material collection system	Two-bag cut-and-throw MCS, 6.5 bu 229 L

Manufacturing location	Greeneville, Tennessee, USA
Date collected	3-Oct-22

-27%

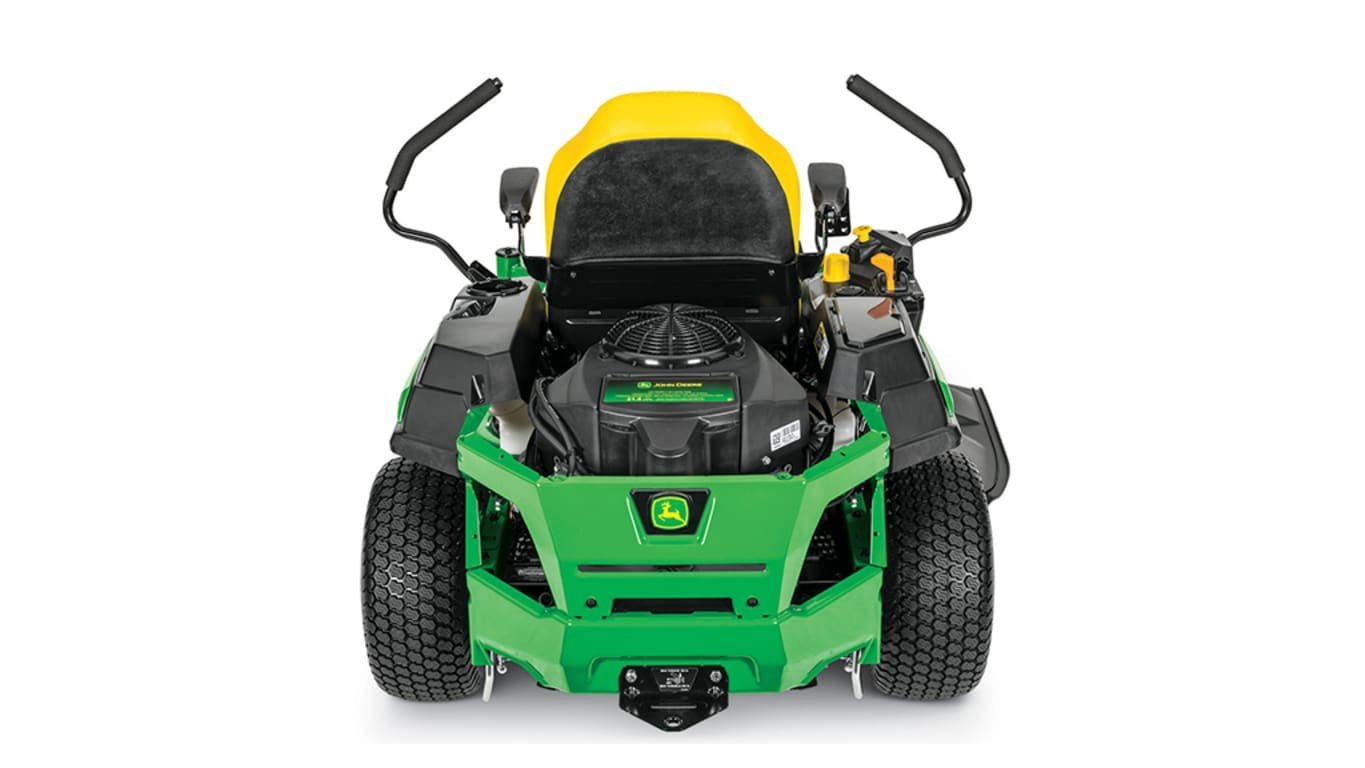

Z20R ZTrak™ Mower with 42-in. Deck - Image 1

Z20R ZTrak™ Mower with 42-in. Deck - Image 2

Click to enlarge

Z20R ZTrak™ Mower with 42-in. Deck

Name: Z20R ZTrak™ Mower with 42-in. Deck
SKU: 884
Availability: InStock

Original price was: $ 3,699.00.Current price is: $ 2,700.00.

Add to compare

Add to wishlist

Category: Mower Tag: mower

Description
Shipping & Delivery

Description

Key Specs
Engine power	21.5 hp 16.0 kW
Engine model number	FR651V
Forward speed	0-7 mph 0-11.3 km/h
Front caster tires	11×6-5
Drive tires	18×8.5-8
Seat back height	High back with armrests, 20 in. 51 cm
Width of cut	Accel Deep™ mower deck, 42 in. 107 cm
Mulching system	Optional MulchControl™ attachment
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine
Power	21.5 hp 16.0 kW
Model number	FR651V
Displacement	44.3 cu in. 726 cc
Cylinders	V-twin
Lubrication	Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L
Type	Overhead valve
Battery	12 V 300 CCA
Choke/speed control	Separate levers
Cooling method	Air
Fuel tank capacity	3.0 U.S. gal. 11.4 L
Fuel gauge	Translucent tank

Drive train
Dual hydros	Hydro-Gear EZT-C with 1-in. (2.5-cm) axles

Travel speed
Forward speed	0-7 mph 0-11.3 km/h
Reverse speed	0-3.5 mph 0-5.6 km/h
Speed and direction control	Twin levers
Control adjustment	3 height, 11 positions

Chassis
Frame	Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint	E-coat/powder
Front caster tires	11×6-5
Front caster bearings	Sealed ball bearings
Drive tires	18×8.5-8
Hour meter	Yes
Service interval decal	Yes
Storage compartment	Standard covered
Cup holder	Yes
Maximum towing capacity	250 lb 113 kg

Seat
Seat back height	High back with armrests, 20 in. 51 cm
Fore-aft adjustment	2.9 in. 7 cm
Seat suspension	Two springs

Lift system
Type	Foot lift
Mower cut height	1.25-4.5 in. 3-11 cm
Cut height increments	0.25 in. 0.64 cm
Preset cut height	Yes

Mower deck
Width of cut	Accel Deep™ mower deck, 42 in. 107 cm
Type	Side discharge
Mower deck material	12 gauge 0.105 in. 2.7 mm
Mower drive system	V-belt

PTO
Type	Electric, 105 lb-ft 142 Nm
Drive	V-belt

Dimensions
Wheelbase	49.4 in. 1255 mm
Overall length	75.4 in. 1915 mm
Width without mower	43.3 in. 1100 mm
Width with mower	50.4 in. 1280 mm
Width with mower (deflector raised for storage)	46.5 in. 1180 mm
Height	43.3 in. 1100 mm
Weight	572 lb 260 kg

Operation
Rollover protective structure (ROPS)	No
Slope operating limit	13 degrees; 10 degrees with Material Collection System
Operator presence system	Yes
Park brake interlock	Yes
Operator video	Yes, online

Buyer’s notes
Note 1	Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels
Note 2	Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3	Integrated park brake is automatically applied when steering levers are stowed outward
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional attachments
Mulching system	Optional MulchControl™ attachment
Rubber floor mat	Standard
Sun shade	Optional
Mounted sprayer	Not available
Protective cover	Optional
Light kit	Standard
Material collection system	Two-bag cut-and-throw MCS, 6.5 bu 229 L

Manufacturing location	Greeneville, Tennessee, USA
Date collected	3-Oct-22
